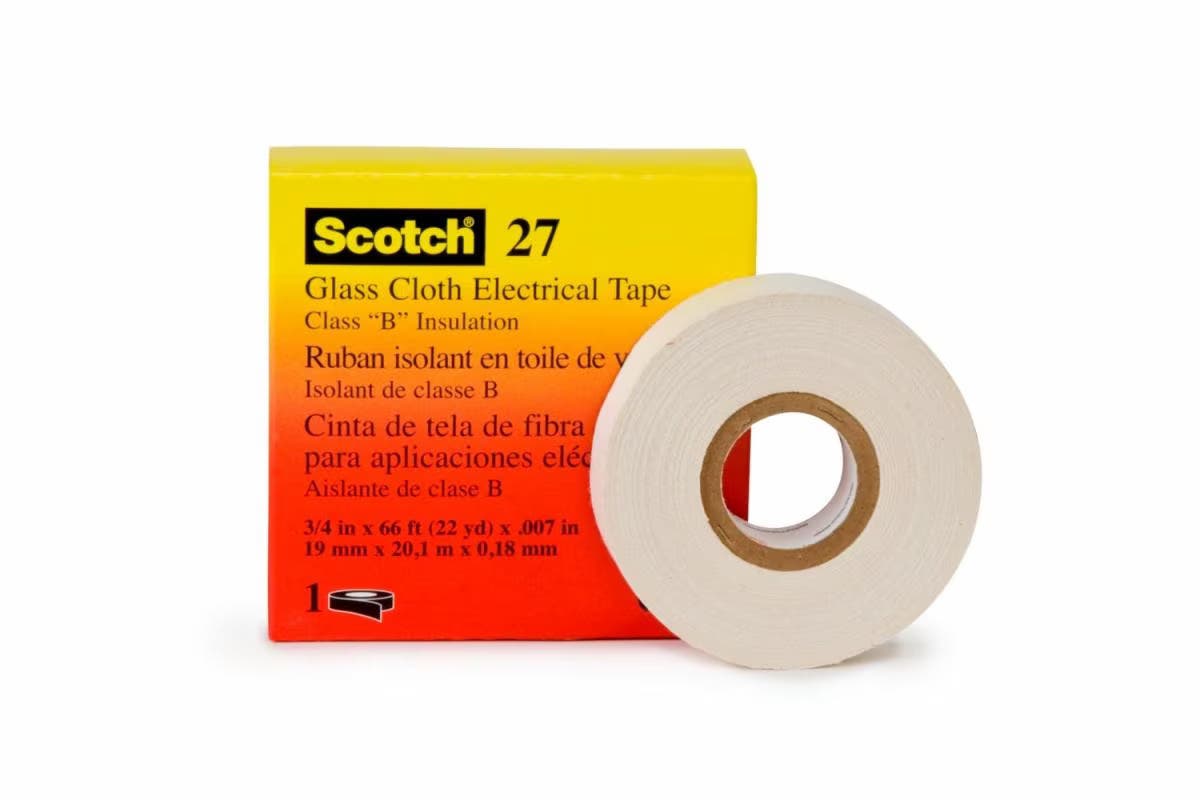

3M Glass Cloth Electrical Tape 27, 3/4 in x 66 ft

3/4 in x 66 ft

7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive

Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures

SKU: 260081,3M,27 Category:
Buy Online

Glass Cloth Electrical Tape 27 is a 7-mil woven insulating tape with pressure-sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Glass Cloth Tape 27 is edge-tear resistant, conformable, and abrasion resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. UL Recognized. Printable

Additional information

Adhesive Type

Rubber

Application

Electrical Maintenance

Backing (Carrier) Material

Glass cloth

Brands

3M™

Dielectric Strength

000 V, 3

Elect. Corr. Factor

0.9

Elongation At Break

5.0 Percent

Insulation Resistance

4.8 x 10^4 megohms

Max Operating Temp (°C)

150 ℃

Min Operating Temp (°C)

0 ℃

Overall Length (Metric)

20.1 Meter

Overall Width (Metric)

19.05 mm

Product Color

White

Tape Thick w/o Liner(Metric)

0.178 mm

Units per Case

50
