Scotch® Linerless Rubber Splicing Tape 130C is a premium-grade option for splicing and terminating cables and wires. This highly-conformable tape provides electrical and mechanical protection thanks to a self-fusing, ethylene-propylene rubber (EPR) backing with a fusible adhesive interlayer. These features make it an ideal choice for primary insulation for solid, dielectric insulated cables rated through 69 kV, as well as bus bar insulation, cable end sealing cables and jacket repair applications. Scotch® Linerless Rubber Splicing Tape 130C also has outstanding mechanical and electrical properties that create a moisture seal and offer void-free buildups. This tape is self-certified to ASTM D4388 Type III and is ROHS compliant; for more compliance information, visit www.3m.com/regs.

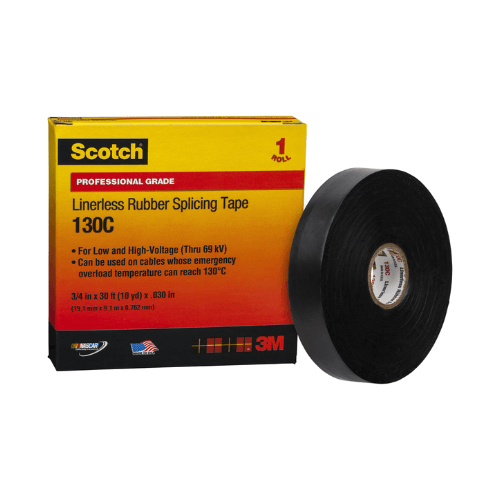

3M Scotch® Linerless Rubber Splicing Tape 130C, 3/4 in x 30 ft – Black
Legacy 3M Model: 80610833404
Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
Provides an excellent thermal dissipation of splice heat
Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
Withstands temperatures up to 194 °F (90 °C)
ASTM Approved and RoHS 2011/65/EU Compliant
Additional information
| Max Operating Temp (°C) | 90 |
|---|---|
| Overall Length (cm) | 9.143553795 |
| Overall Width (cm) | 1.9 |
| Tape Thickness w/o Liner, mm | 0.76 |
| Adhesive Type | Rubber |
| Application | Insulation |
| Application/Industry | Utility |
| Backing (Carrier) Material | Ethylene Rubber |
| Backing Thickness (Metric) | 0.76 |
| Backing Thickness(Metric)UOM | mm |
| Dielectric Strength (V/mil) | 750 |
| Elongation At Break | 850 |
| Elongation At Break UOM | % |
| Features | Self-sticking |
| Max Operating Temp (°C) UOM | Degree |
| Max Operating Temp (°F) | 194 |
| Max Operating Temp (°F) UOM | Degree |
| Min Operating Temp (°C) UOM | Degree |
| Product Markets | Electrical MRO |
| Rolls Per Carton | 1 |
| Rolls Per Case | 24 |
| Tape Grade | Premium |
| Tensile Strength (Imperial) | 250 |
| Tensile Strength (Metric) | 1723 |
| Tens. Str. (Metric) UOM | kPa |
| Tape Thick W/O Liner (Imp) | 30 |
| Tape Thick W/O Liner(Imp)UOM | mil |
| Voltage Rating | 69 kV |
