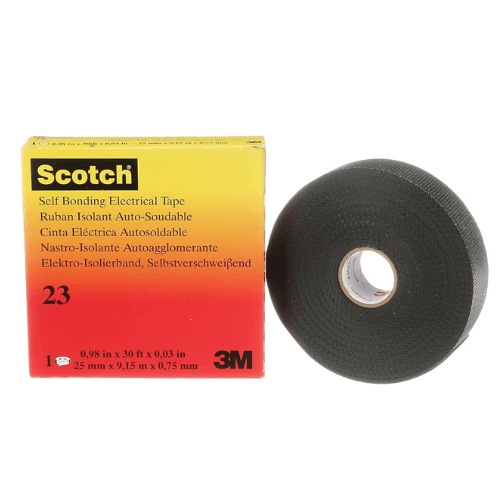

Legacy 3M Model: HT002001283
Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).
Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
Temperature rated for continuous adhesion to 194°F (90°C)
Special polyester liner keeps tape protected and clean during application
ASTM Approved & RoHS 2002/65/EC Compliant
Scotch® Rubber Splicing Tape 23 is a black, 30-mil (0.76 mm) thick, premium grade, highly conformable, rubber splicing tape composed of a self-fusing Ethylene Propylene Rubber (EPR) backing supplied on a removable polyethylene liner.
It withstands temperatures up to 194 °F (90 °C) with an emergency overload rating to 266 °F (130 °C).
| Max Operating Temp (°C) | 90 |
|---|---|
| Overall Length (cm) | 9.143553795 |
| Overall Width (cm) | 2.54 |
| Product Color | Black |
| Tape Thick w/o Liner (mm) | 0.76 |
| Adhesive Type | Non-Adhesive |
| Application | Insulation |
| Backing (Carrier) Material | Ethylene Propylene Rubber |
| Backing Thickness (Metric) | 0.76 |
| Backing Thickness(Metric)UOM | mm |
| Dielectric Strength (V/mil) | 800 |
| Elongation At Break | 1000 |
| Elongation At Break UOM | % |
| Features | Self-sticking |
| Max Operating Temp (°C) UOM | Degree |
| Max Operating Temp (°F) | 194 |
| Max Operating Temp (°F) UOM | Degree |
| Min Operating Temp (°C) UOM | Degree |
| Product Markets | Power Distribution |
| Rolls Per Carton | 1 |
| Rolls Per Case | 32 |
| Shelf Life - Years | 5 |
| Tape Grade | Professional |
| Tensile Strength (Imperial) | 8 |
| Tens. Str. (Imp) UOM | lb/in |
| Tensile Strength (Metric) | 55 |
| Tens. Str. (Metric) UOM | kPa |
| Tape Thick W/O Liner (Imp) | 30 |
| Tape Thick W/O Liner(Imp)UOM | mil |
| Voltage Rating | 69 kV |
