Scotch® Self-Fusing Silicone Rubber Electrical Tape 70 is a high-temperature arc and track-resistant tape composed of self-fusing, inorganic silicone rubber with an easy-tear and easy-strip liner. This tape is used as a protective overwrap for terminating high voltage cables. Scotch® Self-Fusing Silicone Rubber Electrical Tape 70 is RoHS compliant; for more compliance information, visit www.3M.com/regs.

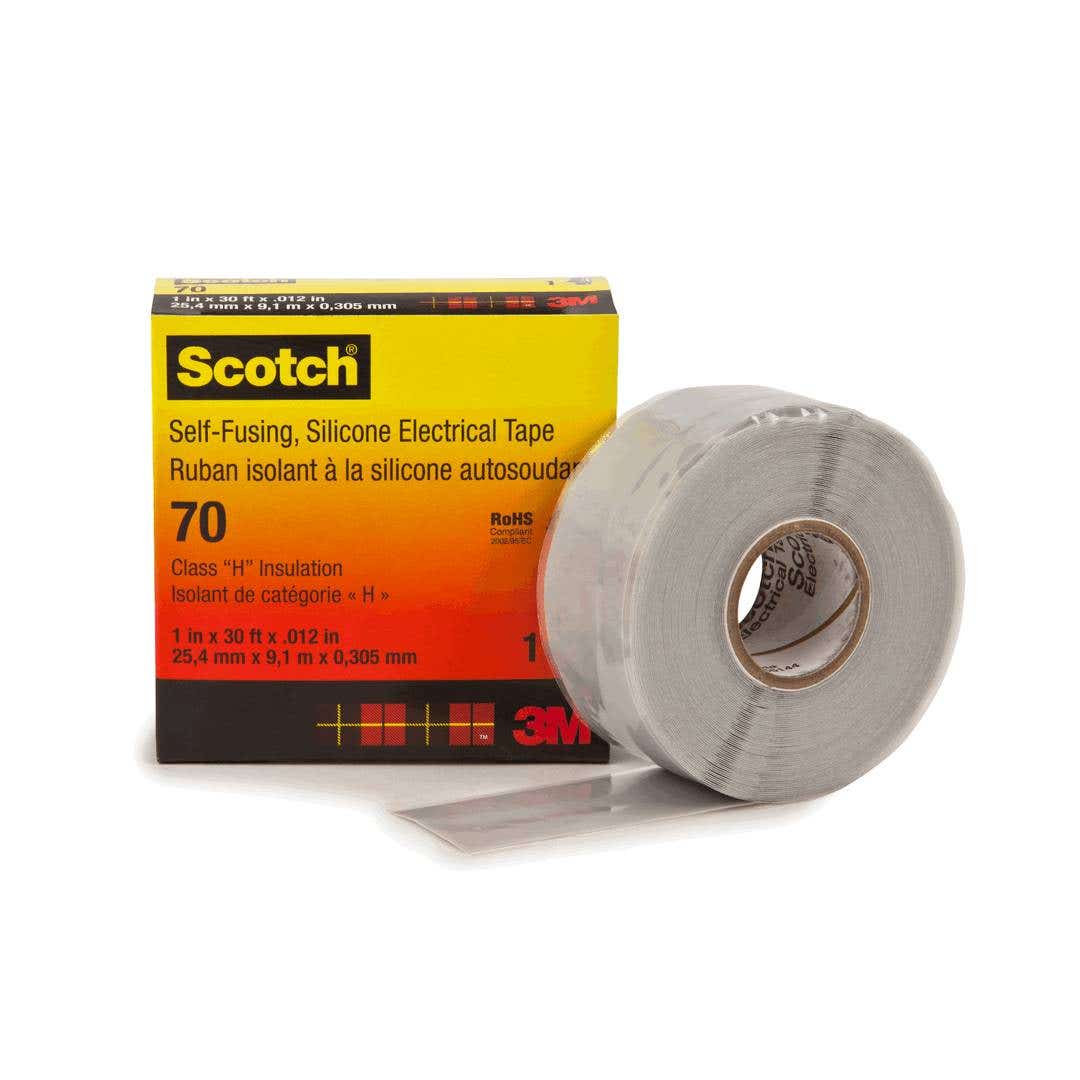

3M Scotch® Self-Fusing Silicone Rubber Electrical Tape 70, 1 in x 30 ft
Legacy 3M Model: 80611438617
Scotch® Tape 70 is a 12 mil thick, premium grade, electrical tape with silicone rubber backing. This tape is used as a base tape layer for easy re enter connections. It withstands temperatures up to 356 °F (180 °C).
Silicone rubber backing and highly conformable, silicone adhesive
Withstands temperatures up to 356 °F (180 °C)
RoHS 2011/65/EU Compliant
Additional information
| Max Operating Temp (°C) | 180 |
|---|---|
| Overall Length (cm) | 9.143553795 |
| Overall Width (cm) | 2.54 |
| Product Color | Sky Blue |
| Tape Thick w/o Liner (mm) | 0.3 |
| Adhesive Type | Non-Adhesive |
| Application | Insulation |
| Application/Industry | Irrigation |
| Backing (Carrier) Material | Silicone |
| Backing Thickness (Metric) | 0.3 |
| Backing Thickness(Metric)UOM | mm |
| Dielectric Strength (V/mil) | 34 |
| Elongation At Break | 450 |
| Elongation At Break UOM | % |
| Features | UV-resistant |
| Max Operating Temp (°C) UOM | Degree |
| Max Operating Temp (°F) | 356 |
| Max Operating Temp (°F) UOM | Degree |
| Min Operating Temp (°C) UOM | Degree |
| Product Markets | Power Distribution |
| Rolls Per Carton | 1 |
| Rolls Per Case | 24 |
| Shelf Life - Years | 5 |
| Tape Grade | Professional |
| Tensile Strength (Metric) | 82.7 |
| Tens. Str. (Metric) UOM | kPa |
| Tape Thick W/O Liner (Imp) | 12 |
| Tape Thick W/O Liner(Imp)UOM | mil |
