Scotch® Super 33+ Tape is designed for above/below grade, indoor/outdoor, low and high voltage applications and for harnessing cables. This tape offers electrical and mechanical protection with the combination of a pressure sensitive, rubber resin adhesive and elastic, PVC backing. It provides a protective jacket for high voltage cable splices. This electrical tape is highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

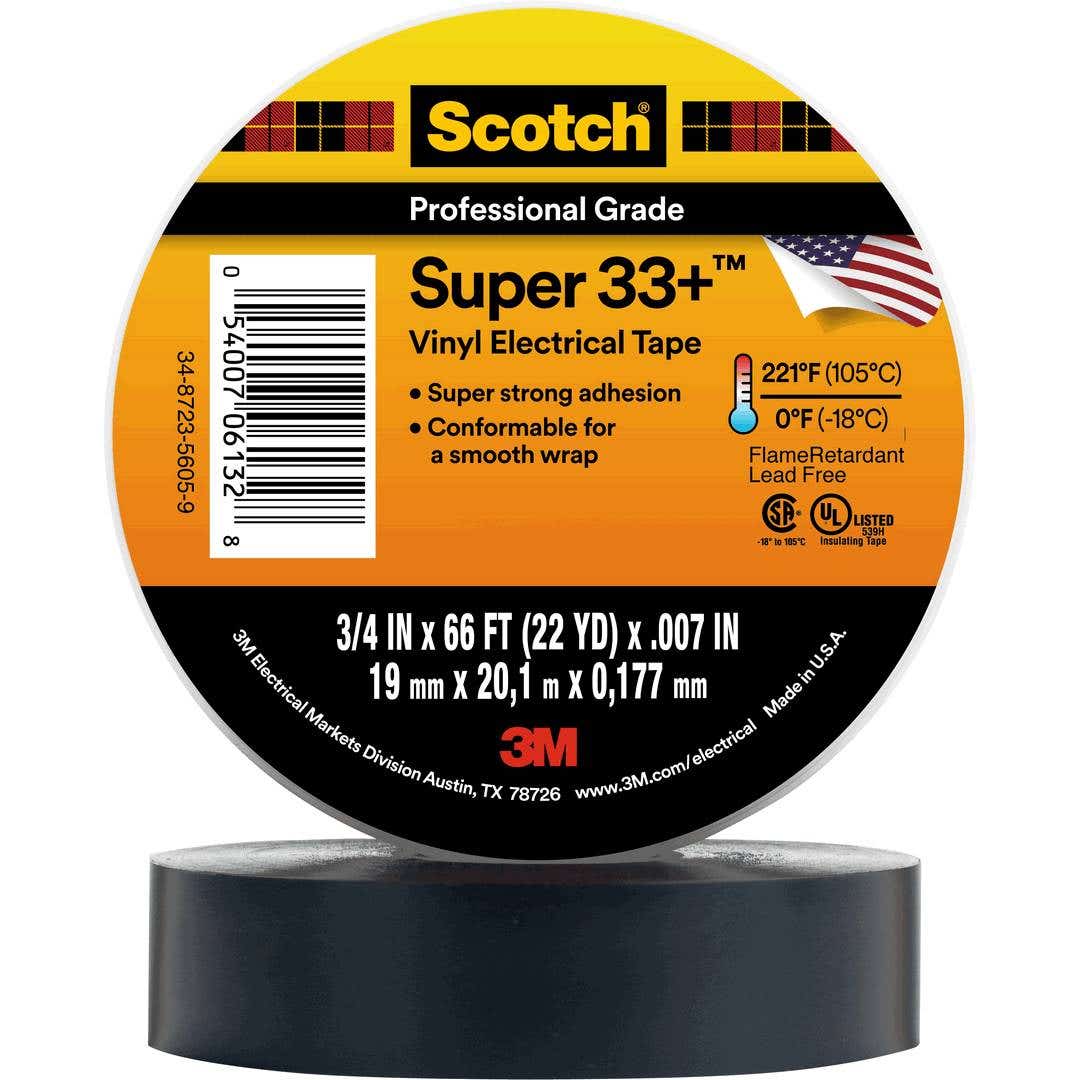

3M Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 66 ft (19 mm x 20,1 m)
Legacy 3M Model: 80611207012
Scotch® Super 33+ Vinyl Electrical Tape is a 7 mil thick, premium grade tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of 0 to 221 °F ( 18 to 105 °C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds.
The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
Resists UV rays, abrasion, moisture, alkalis, solvents and acids
Flame-retardant and inhibits the corrosion of electrical conductors
Made of durable PVC
Compatible with rubber and synthetic splicing compounds
Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
Additional information
| Max Operating Temp (°C) | 105 |
|---|---|
| Overall Length (cm) | 20.11581835 |
| Overall Width (cm) | 1.9 |
| Product Color | Black |
| Tape Thick w/o Liner (mm) | 0.178 |
| Adhesive Type | Rubber |
| Application | Insulation |
| Backing (Carrier) Material | PVC |
| Dielectric Strength (V/mil) | 1150 |
| Elongation At Break | 250 |
| Elongation At Break UOM | % |
| Inner Billing Unit | RLS |
| Inner Height | 8.938 INCH |
| Inner Length | 3.625 INCH |
| Inner Weight | 2.5 LBS |
| Inner Width | 3.625 INCH |
| Max Operating Temp (°C) UOM | Degree |
| Max Operating Temp (°F) | 221 |
| Max Operating Temp (°F) UOM | Degree |
| Min Operating Temp (°C) | -18 |
| Min Operating Temp (°C) UOM | Degree |
| Min Oper Temp (°F) UOM | Degree |
| Product Markets | Electrical Equipment Manufacturing |
| Tape Grade | Professional |
| Tensile Strength (Imperial) | 15 |
| Tens. Str. (Imp) UOM | lb/in |
| Tensile Strength (Metric) | 26 |
| Tens. Str. (Metric) UOM | N/cm |
| Tape Thick W/O Liner (Imp) | 7 |
| Tape Thick W/O Liner(Imp)UOM | mil |
| Voltage Rating | 600 V |
