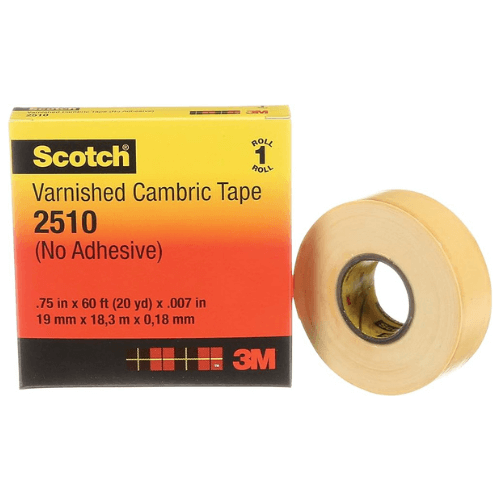

3M Scotch® Varnished Cambric Tape 2510, 3/4 in x 60 ft – Yellow

Legacy 3M Model: 80610833420

Scotch® Tape 2510 is a 7 mil thick, premium grade varnished cambric tape that’s suitable for insulating bus bars, motor leads and service drop connections. The electrical properties of the tape remain stable in a temperature range of 32 to 221 °F (0 to 105 °C).

Straight cut woven cotton cambric fabric is infused with yellow varnish for electrical insulation

Provides excellent tensile strength

Withstands a temperature range of 32 to 221 °F (0 to 105 °C)

ASTM Approved and RoHS 2011/65/EU Compliant

SKU: 260068,3M,2510 Category:
Buy Online

Scotch® Varnished Cambric Tapes are made from straight-cut woven cotton cambric fabric. The fabric is oil primed and coated with a high-grade yellow electrical insulating varnish. Varnished cambric tapes are flexible, electrically insulating and moisture resistant with a smooth finish. Scotch® Varnished Cambric Tape 2510 is yellow, non-adhesive coated and 7 mils thick.

These tapes perform continuously in temperatures up to 105 °C (221 °F) with excellent resistance to abrasion, puncture and cut-through.

For insulating joints requiring rapid and clean re-entry such as motor lead and service drop connections, heavy split- bolts in raceways and bus bar insulating. Use in areas where mechanical protection and puncture resistance is critical.

Note: Scotch Varnished Cambric Tapes 2510 and 2520 should not be used as primary insulation for splicing and terminating PILC Cable

ASTM Approved and RoHS Compliant.

Additional information

Max Operating Temp (°C)

105

Overall Length (cm)

18.28710759

Overall Width (cm)

1.905

Product Color

Yellow

Tape Thick w/o Liner (mm)

0.177

Adhesive Type

Non-Adhesive

Application

Electrical Maintenance

Application/Industry

Utility

Backing (Carrier) Material

Cotton Cloth

Dielectric Strength (V/mil)

800

Max Operating Temp (°C) UOM

Degree

Max Operating Temp (°F)

220

Max Operating Temp (°F) UOM

Degree

Min Operating Temp (°C) UOM

Degree

Min Oper Temp (°F)

32

Min Oper Temp (°F) UOM

Degree

Product Markets

Electrical Construction

Rolls Per Carton

1

Rolls Per Case

20

Tape Grade

Professional

Tensile Strength (Metric)

876

Tens. Str. (Metric) UOM

N/100mm

Tape Thick W/O Liner (Imp)

7

Tape Thick W/O Liner(Imp)UOM

mil
