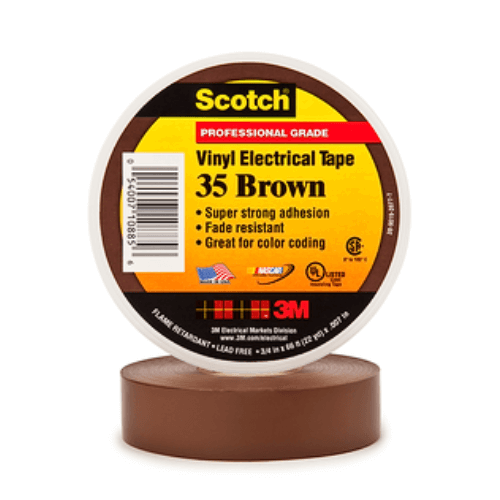

3M Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft – Brown

Legacy 3M Model: 80610833941

Work efficiently and easily with Scotch Tape 35. This premium-grade electrical tape makes marking safety areas and color-coding motor leads a breeze. Tape 35 is 7-mil thick tape that stands up to temperatures of 32 to 221 degrees F (0 to 105 degrees C), so it’s rated 600V and is flame retardant. This tape also works well for applications like phase identification and marking piping systems.

The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection

Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids

Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas

Made of durable PVC

Withstands a temperature range of 14 to 221 °F (-10 to 105 °C)

UL Listed, VDE, CSA Certified and RoHS 2015/863/EU Compliant

SKU: 260037,3M,35 Category:
Buy Online

Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape.

It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive.

In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables.

The tape’s color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​

UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

Additional information

Max Operating Temp (°C)

105
Overall Length (cm)

20.11581835
Overall Width (cm)

1.9
Product Color

Brown
Tape Thick w/o Liner (mm)

0.178
Adhesive Type

Rubber
Application

Electrical Maintenance
Backing (Carrier) Material

PVC
Dielectric Strength (V/mil)

600
Elect. Corr. Factor

0.9
Elongation At Break

225
Elongation At Break UOM

%
Family

Scotch® Vinyl Color Coding Electrical Tape 35
Inner Billing Unit

RLS
Inner Height

3.625 INCH
Inner Length

8.938 INCH
Inner Weight

2.45 LBS
Inner Width

3.625 INCH
Max Operating Temp (°C) UOM

Degree
Max Operating Temp (°F)

221
Max Operating Temp (°F) UOM

Degree
Min Operating Temp (°C) UOM

Degree
Min Oper Temp (°F)

32
Min Oper Temp (°F) UOM

Degree
Product Markets

Electrical Construction
Rolls Per Carton

10
Rolls Per Case

100
Shelf Life - Years

5
Tape Grade

Professional
Tensile Strength (Imperial)

90
Tens. Str. (Imp) UOM

lb/in
Tensile Strength (Metric)

1577
Tens. Str. (Metric) UOM

N/100mm
Tape Thick W/O Liner (Imp)

7
Tape Thick W/O Liner(Imp)UOM

mil
Voltage Rating

600 V
