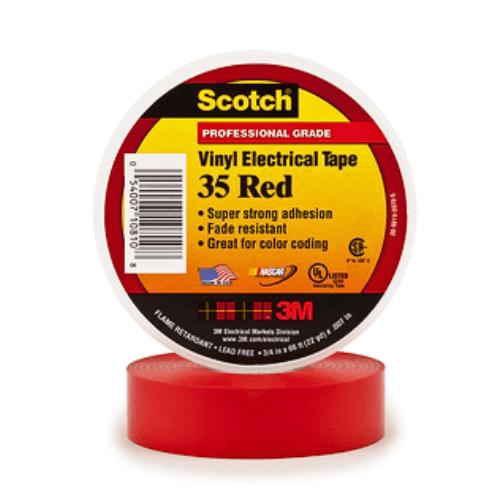

3M Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft – Red

Legacy 3M Model: 80610833909

Keep rugged projects organized with Scotch Tape 35. This premium-grade tape is durable and color-coded to make it easy to match up pipe systems and motor leads, identify phases, or to mark off safety areas. This 7-mil thick tape is 600V-rated, flame retardant and can withstand temperatures ranging from 32 to 221 degrees F (0 to 105 degrees C).

The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection

Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids

Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas

Made of durable PVC

Withstands a temperature range of 14 to 221 °F (-10 to 105 °C)

UL Listed, VDE, CSA Certified and RoHS 2015/863/EU Compliant

SKU: 260031,3M,35 Category:
Buy Online

Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape.

It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive.

In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables.

The tape’s color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​

UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

Additional information

Max Operating Temp (°C)

105

Overall Length (cm)

20.11581835

Overall Width (cm)

1.9

Product Color

Red

Tape Thick w/o Liner (mm)

0.178

Adhesive Type

Rubber

Application

Electrical Maintenance

Backing (Carrier) Material

PVC

Dielectric Strength (V/mil)

1255

Elect. Corr. Factor

0.9

Elongation At Break

225

Elongation At Break UOM

%

Family

Scotch® Vinyl Color Coding Electrical Tape 35

Inner Billing Unit

RLS

Inner Height

8.938 INCH

Inner Length

3.625 INCH

Inner Weight

2.5 LBS

Inner Width

3.625 INCH

Max Operating Temp (°C) UOM

Degree

Max Operating Temp (°F)

221

Max Operating Temp (°F) UOM

Degree

Min Operating Temp (°C) UOM

Degree

Min Oper Temp (°F)

32

Min Oper Temp (°F) UOM

Degree

Product Markets

Electrical MRO

Rolls Per Carton

10

Rolls Per Case

100

Tape Grade

Professional

Tape Thick W/O Liner (Imp)

7

Tape Thick W/O Liner(Imp)UOM

mil

Voltage Rating

600 V
