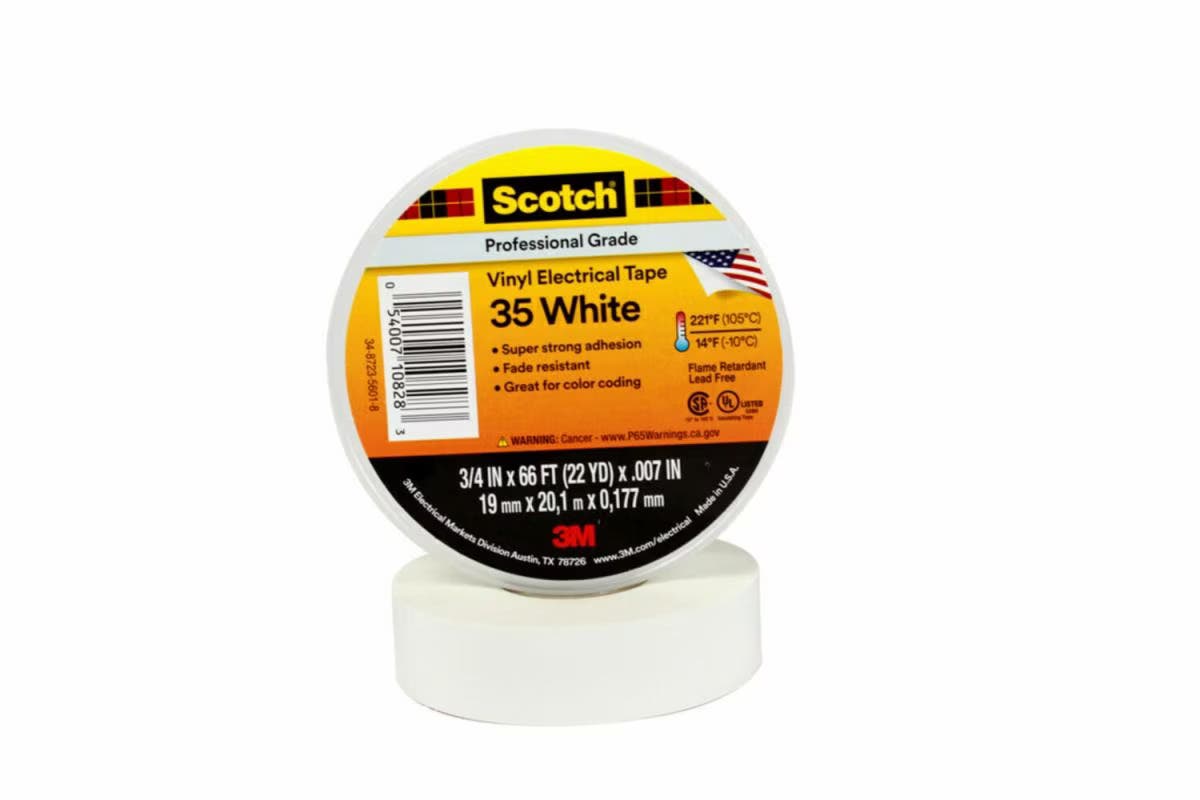

3M Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft – White

The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection

Flame-retardant and highly resistant to abrasion, moisture, alkalis, solvents and many acids

Tape measures 3/4 in x 66 ft x 7 mil

SKU: 260036,3M,35 Category:
Buy Online

Scotch® Vinyl Electrical Tape 35 is a 7-mil thick, premium-grade, color-coded electrical tape. This flame-retardant tape is suitable for use in phase identification, color coding of motor leads and piping systems and for marking safety areas. This tape is 600V-rated and withstands a temperature range of 32 to 221 degrees F (0 to 105 degrees C).

Scotch® Vinyl Electrical Tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure sensitive, rubber resin adhesive and an elastic PVC backing. This tape is flame retardant and is highly resistant to abrasion, moisture, alkalis, acids, solvents and varying weather conditions. It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant.

Additional information

Adhesive Type

Rubber

Application

Electrical Maintenance

Backing (Carrier) Material

PVC

Brands

Scotch®

Dielectric Strength

600 V

Elect. Corr. Factor

0.9

Elongation At Break

225.0 Percent

Insulation Resistance

> 10^6 megohms

Max Operating Temp (°C)

105 ℃

Min Operating Temp (°C)

0 ℃

Overall Length (Metric)

20.1 Meter

Overall Width (Metric)

19 mm

Product Color

White

Rolls Per Carton

10

Rolls Per Case

100

Shelf Life

5 Year

Specifications Met

CSA Certified

Tape Grade

Professional

Tape Thick w/o Liner(Metric)

0.178 mm

Voltage Rating

600 V
