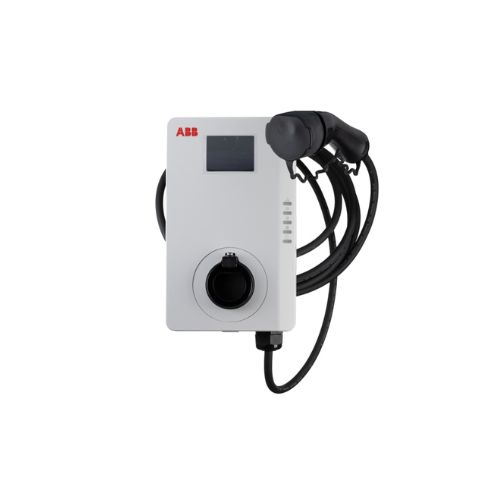

ABB Terra AC Wallbox 7.4kW with 4G and MID Display Screen, 5m cable, 32A, TAC-W7-G5-RD-MC-0

ABB DC Wall Box Product Code : TWB-CE-24C-3T-7M-0-0

Certification

ABB charger has obtained the Letter of No Objection (LNO) and type approval from the Land Transport Authority (LTA).

SKU: 520476,ABB Category:

The ABB Terra AC wallbox offers homeowners and building owners a space-saving and easy-to-install solution for optimized EV charging. Compliant with IEC standards, it features smart functionality, remote software updates, and a built-in energy meter for load management, ensuring a seamless and future-proof charging experience.

Engineered for value, the ABB Terra AC wallbox provides high-quality charging at a competitive price, combining the reliability of ABB’s renowned safety standards with flexibility. Homeowners enjoy convenient control and monitoring through the user-friendly ChargerSync App.

Designed for maximum safety and protection, the wallbox includes integrated current limiting and ground fault protection, ensuring peace of mind for both users and their vehicles. With a broad range of connectivity options, the ABB Terra AC wallbox is adaptable to the evolving needs of modern home energy management systems, making it the best value home charger on the market.

Additional information

EV Connectors:

(AC Type 2) 1 piece
Number of Socket Outlets:

Cable only
Cable Length:

5 m
Output Power:

Nominal 7 kW
Output Voltage (Uout):

AC 1-phase 184 … 276 V
Output Current Maximum:

AC 1-phase 32 A
Connection Power:

Nominal 7 kW
Input Voltage (Uin):

AC 1-phase 184 … 276 V
Input Current:

1-phase 32 A
Frequency (f):

50 … 60 Hz
Number of Phases:

1
Connection Configuration:

TN, TT
RCDs in EV Supply Equipment:

Resid. Curr. Monitor
Miniature Circuit Breakers:

Integrated brreaker
Overvoltage Category:

III
Overload Protection:

40 A Overcurrent Protection
Cross-Section:

6 mm
Ambient Air Temperature:

Operation -30 to +50 ?C
Max Op Altitude Permissible:

2000 m
Communication Interface:

Bluetooth, ETH, Modbus, Wifi
Communication Protocol:

OCPP 1.6
Load Management Method:

OCPP – Based
Authentication Method:

App, Free Vending, RFID
Energy Meter Type:

AC
Enclosure Type:

indoor, outdoor
Mounting Type

Wall mounting
Housing Material:

Plastic
Degree of Protection:

acc. to IEC 60529 IP54
Impact Resistance Rating:

IK08
Product Net Width:

195 mm
Product Net Depth / Length:

320 mm
Product Net Height:

110 mm
Product Net Weight:

4.1 kg
Package Level 1 Units:

carton 1 piece
Package Level 1 Width:

350 mm
Package Level 1 Height:

350 mm
Pkg Level 1 Depth / Length:

350mm
Pkg Level 1 Gross Weight:

5.6kg
Package Level 1 EAN:

8719874450935
Package Level 2 Units:

pallet (lift) 18 piece
Package Level 2 Width:

830 mm
Package Level 2 Height:

1150 mm
Pkg Lv 2 Depth / Length:

1130 mm
Pkg Level 2 Gross Weight:

119.7 kg
Download brochure
