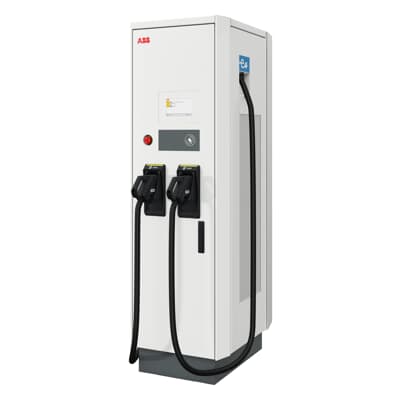

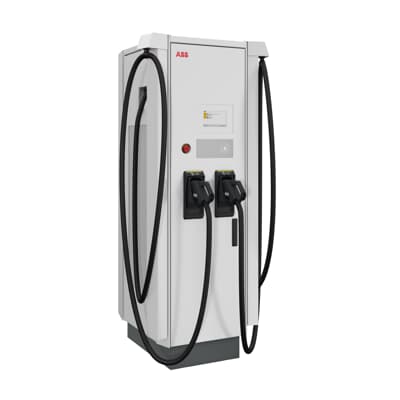

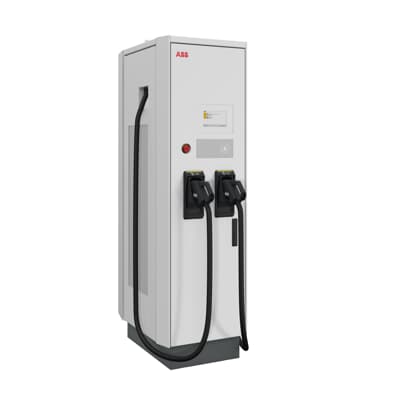

ABB Terra CE 184 CC 6N2-7M-H-0 , Terra 180 kW Charger

ABB DC Fast Charger Product Code : Terra CE 184 CC 6N2-7M-H-0

Terra 184 EV charger, 180 kW output power, 150-920 V, two CCS 2 200 A connectors, 6 m long cables, 7″ touch-display, RFID reader, 3G/4G modem, High Current, CE

Certification

ABB charger has obtained the Letter of No Objection (LNO) and type approval from the Land Transport Authority (LTA).

Category:

Terra DC fast charger, the fast all-in-one charging solution.

The ABB Terra DC fast charger, with a power output of 180kW and a 6m cable, is a compact, all-in-one solution ideal for bus depots. It supports a broad power range from 50-180 kW and offers up to 400 A charging via CCS connectors. This charger is well-suited for depots with ample space around vehicles or where vehicle authentication is required.

Terra-DC-fast-chargers

Key Benefits:

  • Easy and low cost installation: this all-in-one charge post does not
    require a separate power cabinet
  • Proven technology: based on the Terra 54 control platform
    (>10,000 units in operation)

Additional information

EV Connectors:

(CCS 2) 2 piece
Number of Socket Outlets:

No socket outlet
Cable Length:

6m
Output Power:

DC 180 kW
Output Voltage (Uout):

200 … 920 V
Output Current Max (Iout):

DC 200 A
Connection Power:

198kW
Input Voltage (Uin):

AC 3-phase 380 … 415 V
Input Current:

AC 3-phase 288 A
Frequency (f):

50 … 60 Hz
Current Type:

DC
Number of Phases:

3
RCDs EV Supply Equipment:

Type A 2 piece
Number of (MCBs):

2
Ambient Air Temperature:

Operation -25 … +70 ?C
Max Op Altitude Permissible:

Without Derating 2500 m
Communication Interface:

4G, Ethernet
Communication Protocol:

OCPP 1.6
Load Management Method:

OCPP – Based
Authentication Method:

App, NFC, Pincode, RFID
Energy Meter Type:

DC
Screen Size:

7 in
Mounting Type

Floor fastening
Housing Material:

Steel
Degree of Protection:

acc. to IEC 60529 IP54
Impact Resistance Rating:

Display IK08, Housing IK10
Product Net Width:

0.565 m
Product Net Depth / Length:

0.880 m
Product Net Height:

1.9000 m
Product Net Weight:

390 kg
Package Level 1 Units:

euro pallet 1 piece
Package Level 1 Width:

0.80 m
Package Level 1 Height:

2.15 m
Pkg Level 1 Depth / Length:

1.20 m
Pkg Level 1 Gross Weight:

405 kg
Download brochure
