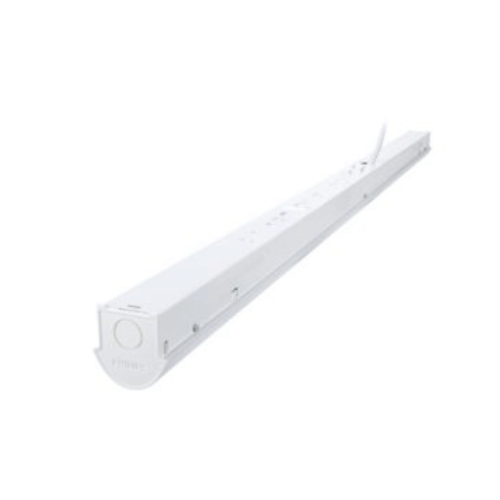

GreenPerform batten BN398C is a cost competitive linear solution with good performance and multiple lumen output for retail and industry applications. It offers surface mount and suspension installations to cater for different mounting options. Its multiple optic designs accommodate different applications as well.
SKU: PL_911401549902
Food & Large Retail
Warehouse
Factory
Indoor Public Area
| Mounting Type | Suspended Ceiling |
|---|---|
| Light Source | LED |
| Mains Voltage | 220 – 240V / 50-60 Hz |
| Dimming | PSU PSD POE WIA |
| Material | Housing SPCC Cover PMMA |
| Main Colour of the Luminaire | WH: RAL 9003 |
| Lumen Maintenance at Median Useful Life 50,000h | L70B50 |
| Luminaire Efficacy | Up to 150lm/W |
| Correlated Colour Temperature - CCT | 4000 K / 6500 K |
| Colour Rendering Index - CRI | 80 |
| Beam Angle | WB |
| Protection Class IEC61140 | Safety Class I: Safety Class III – POE |
| Mechanical Impact Protection | IK03 |
| Ingress Protection | IP20 |
| Overall Length | 600 mm 1200 mm 1500 mm |
| Full Product Name | BN398X LED20/865 L600 L1 W OP |
| Driver Included | Yes |
| Glow-Wire Test | Temperature 650 °C, duration 30 s |
| Number of Gear Units | 1 Unit |
| Order Code | 911401549902 |
| Correlated Colour Temperature (Nom_ | 4000 K |
| Optical Cover Type | Without Lens |
| Colour Rendering Index | ≥80 |
| Luminous Efficacy (rated)(Nom) | 146.666666 lm/W |
| Luminous Flux | 2,200 lm |
| Number of Light Sources | 2 |
| Optic Type | Opal |
| Power Consumption | 15 W |
| Ambient Temperature Range | -20 °C to 40 °C |
| Dimmable | Wireless Dim |
| Housing Colour | White |
| Initial Chromaticity | SDCM<7 |
| Maximum Dim Level | 20% |
