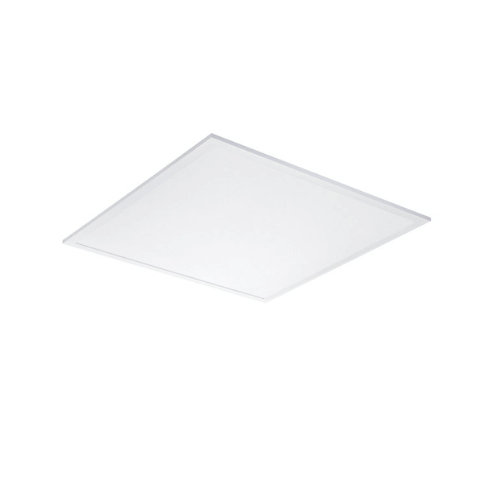

GreenPerform RC099V G2 direct Panel is an affordable LED panel delivering comfortable light with excellent uniformity. It offers 3 types, 600×600,300×1200, and 600x1200mm with max: 110lm/w system efficacy. Its UGR19 version brings more visual comfort to the office. By means of its compact design, the housing height (without driver) reaches only 35mm which gives more flexibility for recessed installation.
PL_911401700733
Office
Commercial
Hospital
Education
| LED Source Engine Type | LED |
|---|---|
| CE Mark | CE Mark |
| Luminous Flux | 3,800 lm |
| Correlated Colour Temperature (Nom) | 4000 K |
| Luminous Efficacy (rated) (Nom) | 110 lm / W |
| Colour Rendering (CRI) | >80 |
| Light Source Colour | 840 Neutral White |
| Optical Cover Type | Polystyrene Bowl / Cover Prismatic |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Power Consumption | 35 W |
| Power Factor (Fraction) | 0.9 |
| Number of products on MCB of 16 A type B | 24 |
| Ambient Temperature Range | -20 to +40° |
| Dimmable | No |
| Housing Material | Steel |
| Optical Cover Material | Polystyrene |
| Housing Colour | White RAL 9003 |
| Optical Cover Finish | Opal |
| Overall Length | 595 mm |
| Overall Width | 595 mm |
| Overall Height | 57 mm |
| Dimensions | 57 x 595 x 595 mm |
| Ingress Protection Code | IP20 [Finger-protected] |
| Mech Impact Protection Code | – |
| Protection Class IEC | Safety Class II |
| Luminous Flux Tolerance | + / – 10% |
| Power Consumption Tolerance | + / – 10% |
| Order Product Name | RC099V G2 LED38/840 PSU W60L60 |
| Full product name | RC099V G2 LED38/840 PSU W60L60 |
| Full product code | 692382864383699 |
| Order code | 911401700733 |
| Material Nr. (12NC) | 911401700733 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 6923828643836 |
| Numerator - Packs per outer box | 4 |
| EAN/UPC - Case | 6923828643836 |
