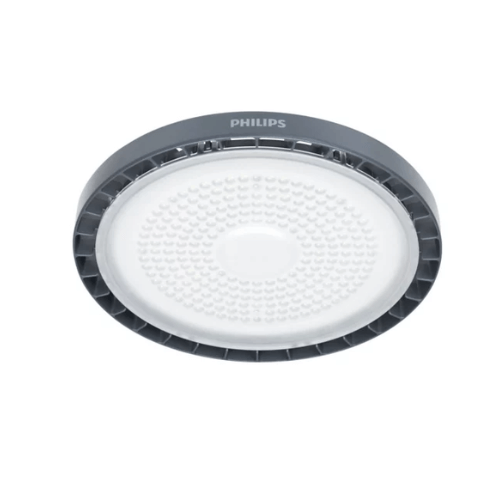

The GreenPerform Highbay G5 continues the GreenPerform family’s enviable reputation for reliable performance. Not only does it deliver leading system efficacy and extended long-term quality, it also promises Unified Glare Rating (UGR) control with compact dimensions. GreenPerform Highbay G5 is also fully compatible with IoT software such as Interact, which is a scalable, future-proof control system. The family also has a series that supports cold room applications with 100% humidity and no condensation. All benefits than make this robust, optimized, and versatile family suitable for almost all industrial applications.
| Light Source Engine Type | LED |
|---|---|
| CE Mark | CE Mark |
| Luminous Flux | 10,500 lm |
| Correlated Colour Temperature (Nom) | 4000 K |
| Luminous Efficacy (rated) (Nom) | 160 lm/W |
| Colour Rendering Index (CRI) | 80 |
| Light Source Colour | 840 Neutral White |
| Optical Cover Type | Lens |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Inrush Current | 41.6A |
| Inrush Time | .665 ms |
| Power Consumption | 67 W |
| Power Factor (Fraction) | 1 |
| Number of Products on MCB of 16 A Type B | 6 |
| Ambient Temperature Range | -30 to +50° |
| Dimmable | No |
| Optical Cover Material | Polycarbonate |
| Housing Colour | Dark Grey |
| Optical Cover Finish | Clear |
| Overall Height | 90 mm |
| Overall Diameter | 290 mm |
| Ingress Protection Code | IP65 [Dust penetration-protected, jet-proof) |
| Mech. Impact Protection Code | IK08 |
| Initial Chromaticity | (0.385, 0.380) SDCM<5 |
| Power Consumption Tolerance | +/- 10% |
| Order Product Name | BY698P G5 LED105/NW PSU WB GM |
| Full Product Name | BY698P G5 LED105/NW PSU WB GM |
| Full Product Code | 872016954925800 |
| Order Code | 911401509091 |
| Material Nr. (12NC) | 911401509091 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 8720169549258 |
| Numerator - Packs per outer box | 1 |
| EAN/UPC - Case | 8720169549258 |
