Benefits of Philips GreenPerform Waterproof G3
Excellent energy savings
Choice of two superior optics
Interact is available for system control
Applications
Parking Garages
Manufacturing
Warehouses

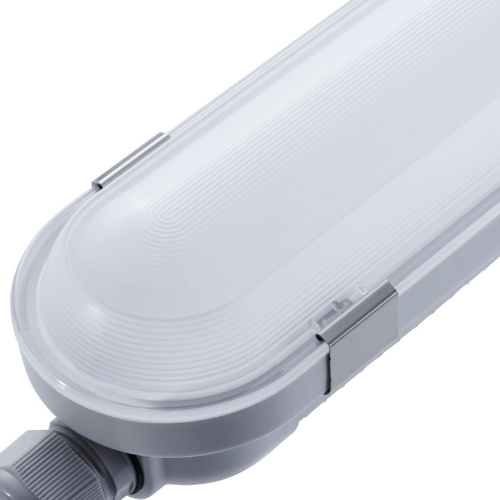

Philips GreenPerform Waterproof G3 WT198X LED20S/840 L1 W L600
GreenPerform Waterproof G3, 14.7 W, 2000 lm, 4000 K, Wireless
GreenPerform Waterproof G3 is a superb choice for hard-working applications. Not only does it provide excellent optical performance, it also delivers substantial energy saving. And because it works seamlessly with IoT software like Interact, it also offers the option of customization, convenience, and data-driven insights.
PL_911401551502
Additional information
| Number of Gear Units | 1 unit |
|---|---|
| Gear | EB [Electronic] |
| Driver Included | Yes |
| Light Engine Type | LED |
| CE Mark | CE Mark |
| Flammability Mark | – |
| ENEC Mark | – |
| Glow-Wire Test | Temperature 650 °C, duration 30 s |
| EY RoHs Compliant | No |
| Luminous Flux | 2,000 lm |
| Correlated Colour Temperature (Nom) | 4000 K |
| Luminous Efficacy (rated) (Nom) | 136.1 lm/W |
| Colour Rendering Index (CRI) | 80 |
| Number of Light Sources | 1 |
| Light Source Colour | 840 Neutral White |
| Optic Type | – |
| Optical Cover Type | Polycarbonate Bowl/Cover |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 to 60 Hz |
| Inrush Current | 8 A |
| Inrush Time | 186 ms |
| Power Consumption | 14.7 W |
| Power Factor (Fraction) | 0.9 |
| Connection | Push-in Connector 3-Pole |
| Cable | – |
| Number oof Products on MCB of 16 Type B | 84 |
| Ambient Temperature Range | 20 to +45 °C |
| Dimmable | Wireless Dim |
| Control Interface | Wireless |
| Housing Material | Plastic |
| Reflector Material | Steel |
| Optic Material | Polycarbonate |
| Optical Cover Material | Polycarbonate |
| Housing Colour | Gray |
| Mounting Device | Mounting Bracket |
| Optical Cover Finish | Clear |
| Overall Length | 665 mm |
| Overall Width | 80 mm |
| Overall Height | 76 mm |
| Dimensions | 76 x 80 x 665 mm |
| Ingress Protection Code | IP65 [Dust penetration-protected, jet-proof] |
| Mech. Impact Protection Code | IK08 [5 J vandal-protected] |
| Protection Class IEC | Safety Class I |
| Photobiological Risk | Photobiological Risk Group 1 @200mm to EN62778 |
| Luminous Flux Tolerance | -10% / +10% |
| Initial Chromaticity | (0.38, 0.38) SDCM≤3 |
| Power Consumption Tolerance | +/-10% |
| Performance ambient temperature Tq 3 | 35 °C |
| Maximum Dim Level | 20% |
| Suitable for Random Switching | Yes |
| Order Product Name | WT198X LED20S/840 L1 W L600 |
| Full Product Name | WT198X LED20S/840 L1 W L600 |
| Full Product Code | 872016953260199 |
| Order Code | 911401551502 |
| Material Nr. (12NC) | 911401551502 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 8720169532601 |
| Numerator - Packs per outer box | 9 |
| EAN/UPC - Case | 8720169544093 |
