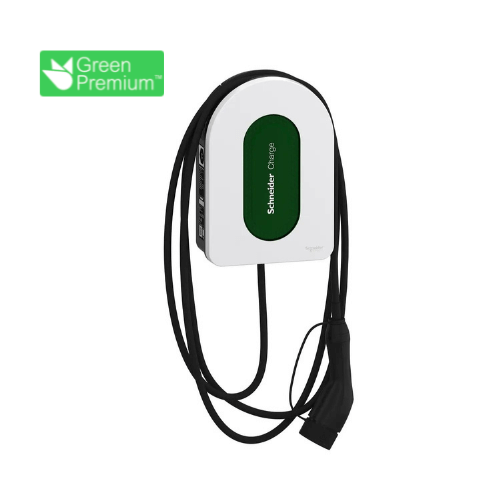

Schneider Charge, 3P+N, 7m cable, 11kW, 16A, EVH5A11N2C7

Schneider Model: EVH5A11N2C7

Compatible with multiple EV plug types, it’s adaptable to various models and comes with a designated app for effortless energy management and home automation.

Certification

Schneider Charge has obtained the test certificate, establishing compliance with the IEC 61851-1 standard.

Standards

  • EN 61851-1 Ed3.0 (2019)
  • EN61000-6-1
  • EN61000-6-3
  • IEC61851-21-2

View Schneider eMobility Brochure



SKU: 299401,SCHNEIDER,EVH5A11N2C7 Category:

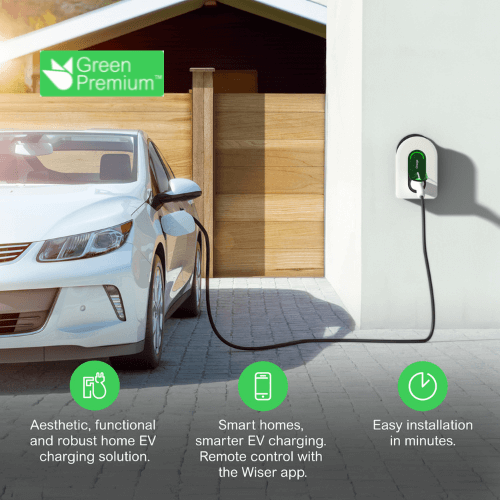

Schneider Charge gives homeowners full control of their EV charging.

Built on open technology, the solution can be managed through Schneider’s Wiser app or a third party application, while fully integrating with any home energy management system (HEMS). Electricians and installers save time and streamline installation and commissioning with a system designed for interoperability. Savings are extended to homeowners, while electricians can access dedicated customer support.

The system can be housed on any wall surface, whatever the space and type of cable. Three different configurations mean easy setup no matter where the cable is coming from, whether top, rear or bottom.

Additional information

Mounting mode

Wall-mounted

Max power

11 kW 16 A

Number of charge point

1

Connection to the vehicle

Attached cable T2 bottom 7 m

Rated supply voltage

400 V AC 50…60 Hz +/- 10 %

Earthing system

IT 230, TN-S, TT

Number of inputs

1

Input type

Dry contact for dynamic energy management

Local signalling

Red, green and blue 1 LED, function: status indication

Protection Type

Earth-leakage protection

Height

352 mm

Width

244 mm

Depth

117 mm

Net weight

5.1 kg

Colour

White/green

Standards

EN 61851, IEC 61851-1

Communication network type

Ethernet, Wi-Fi, Wireless

Communication port protocol

OCPP 1.6 – for connection to the Schneider Electric Wiser app

IP degree of protection

IP55 conforming to EN/IEC 60529

IK degree of protection

IK10

Ambient Temp for Oper.

-35…50 °C

Ambient Air Temp for Storage

-40…85 °C

Relative humidity

5…95 %

Operating altitude

0…2000 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

30.000 cm

Package 1 Width

29.000 cm

Package 1 Length

48.000 cm

Package 1 Weight

7.490 kg

Unit Type of Package 2

P12

Number of Units in Package 2

18

Package 2 Height

103.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

147.000 kg
