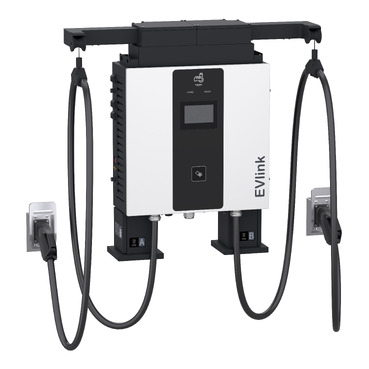

This Schneider EVlink Pro DC fast charging station is designed for all electric vehicles and complies with IEC61851-1 ed.3 and IEC61851-23 standards. It can be wall-mounted or floor-mounted using a separately ordered pedestal. The station features an IP54 protection rating, IK10 and IK08 protection for the touchscreen, and operates in temperatures ranging from -30°C to 50°C, with derating starting at 50°C. It delivers a nominal output power of 60kW through a 4.5m cable with dual CCS2 connectors, equipped with cable management. Powered by a three-phase supply (L1+L2+L3+N+PE), it supports a rated charging current of 97A at 380VAC to 415VAC ± 10%, with a 50 or 60Hz frequency. Compatible with TN-S, TNC-S, TT, and IT earthing systems (with an additional isolation transformer), this charger is easy to install and commission via a laptop connected to its embedded web server.

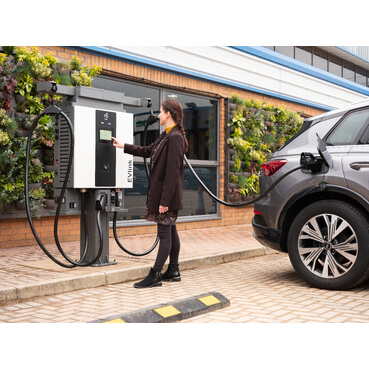

Perfect for locations such as shopping centers, restaurants, street parking, workplaces, shared buildings, and fleet depots, it supports RFID or NFC badge, QR code scan for charge authorization, and includes a touchscreen for user control. The station can be remotely managed and monitored, featuring a stop button, LED charge status indicator, and connectivity options via RJ45 Ethernet, Wi-Fi, and 4G modem. It supports standalone or clustered management with backend applications for energy management, user authentication, and billing, using the OCPP 1.6 protocol for
