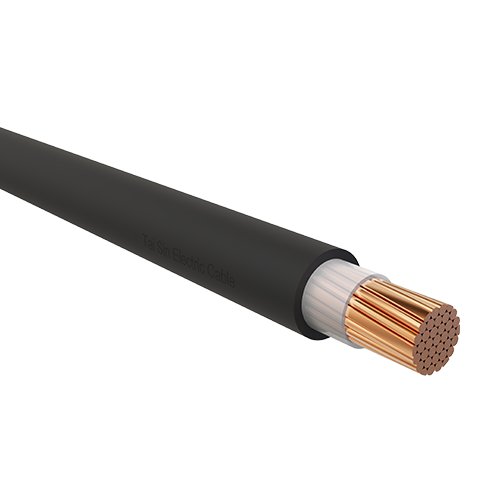

XP, CU / XLPE / PVC – Single Core

XLPE Insulated, PVC Sheathed
600/1000V Cable
Compliant With IEC60502-1

Request for Quote

CONSTRUCTION
Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Outer sheath: Polyvinyl Chloride (PVC) Compound Type PVC/ST2
Outer sheath colour: Black

ELECTRICAL CHARACTERISTICS
Operating voltage, U0 / U: 600/1000V
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes

REFERENCE STANDARDS
Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN 60332-1

INSTALLATION REFERENCE
Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²
